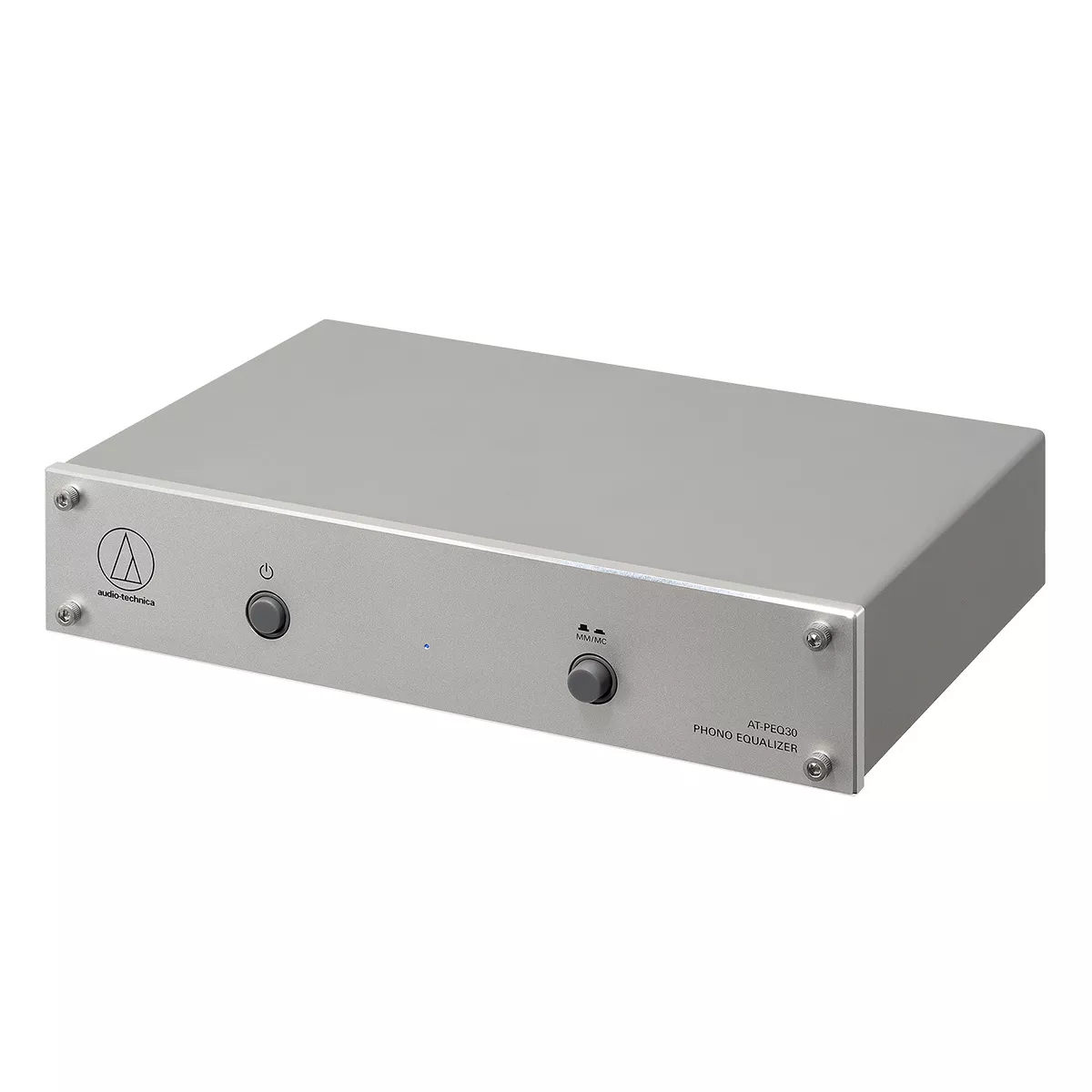

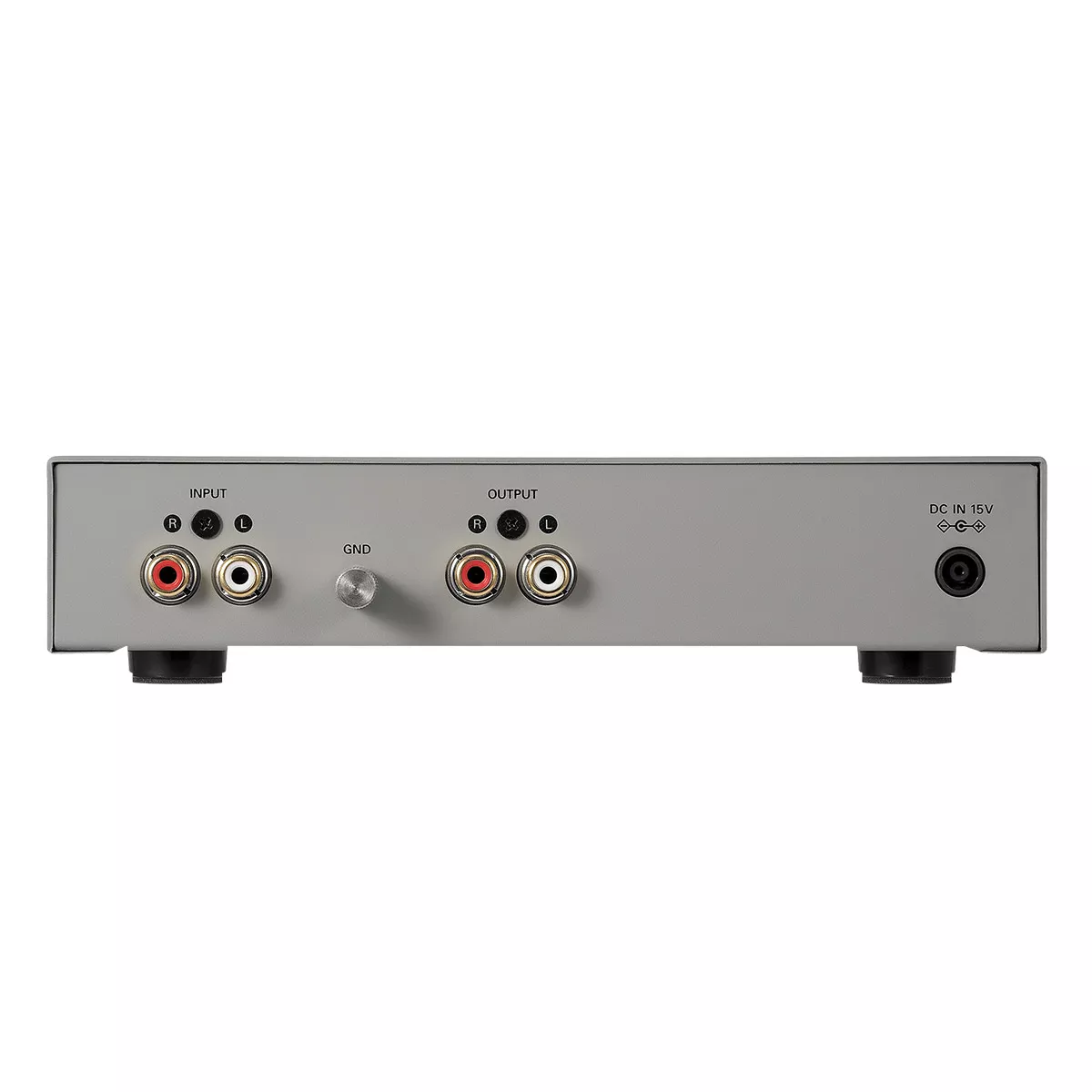

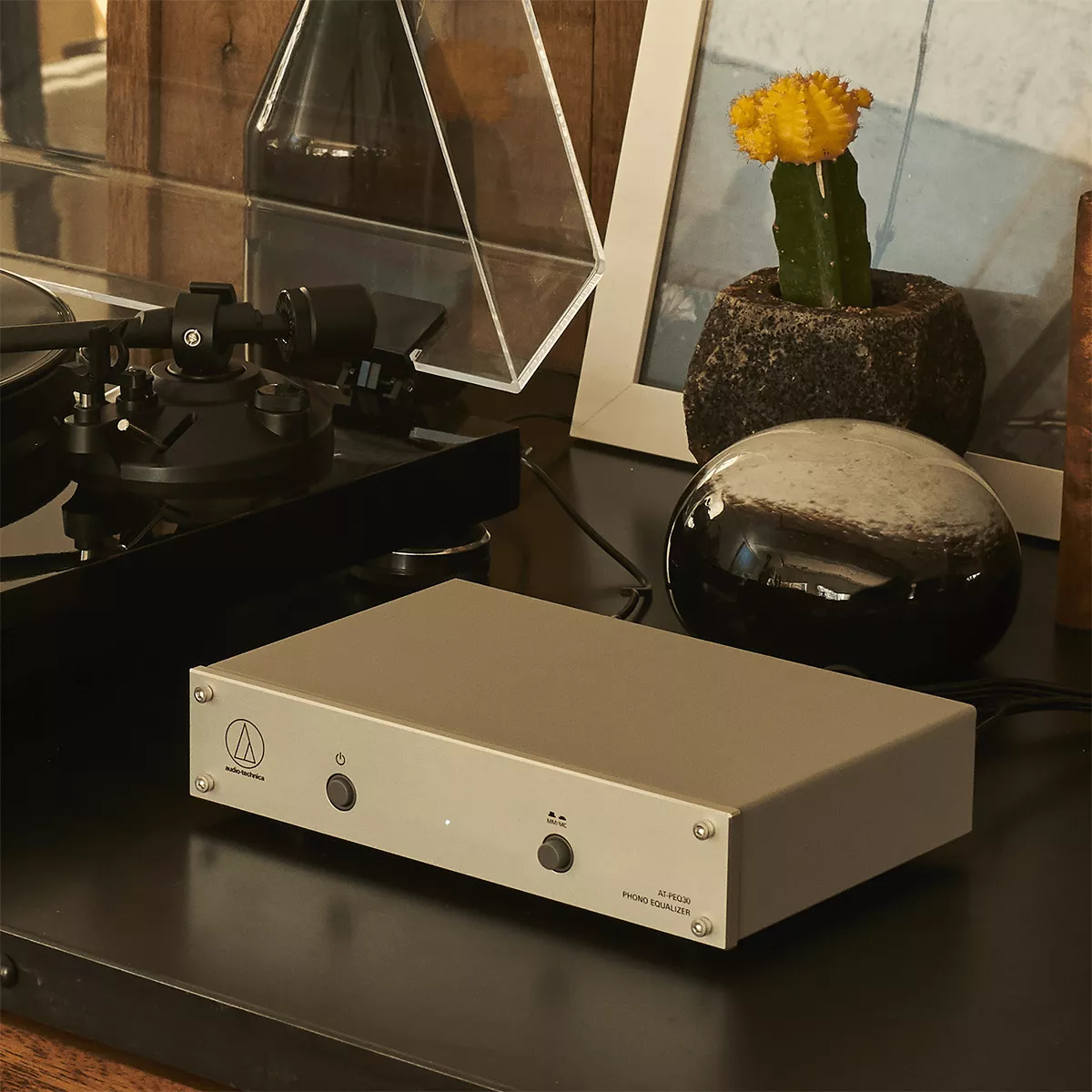

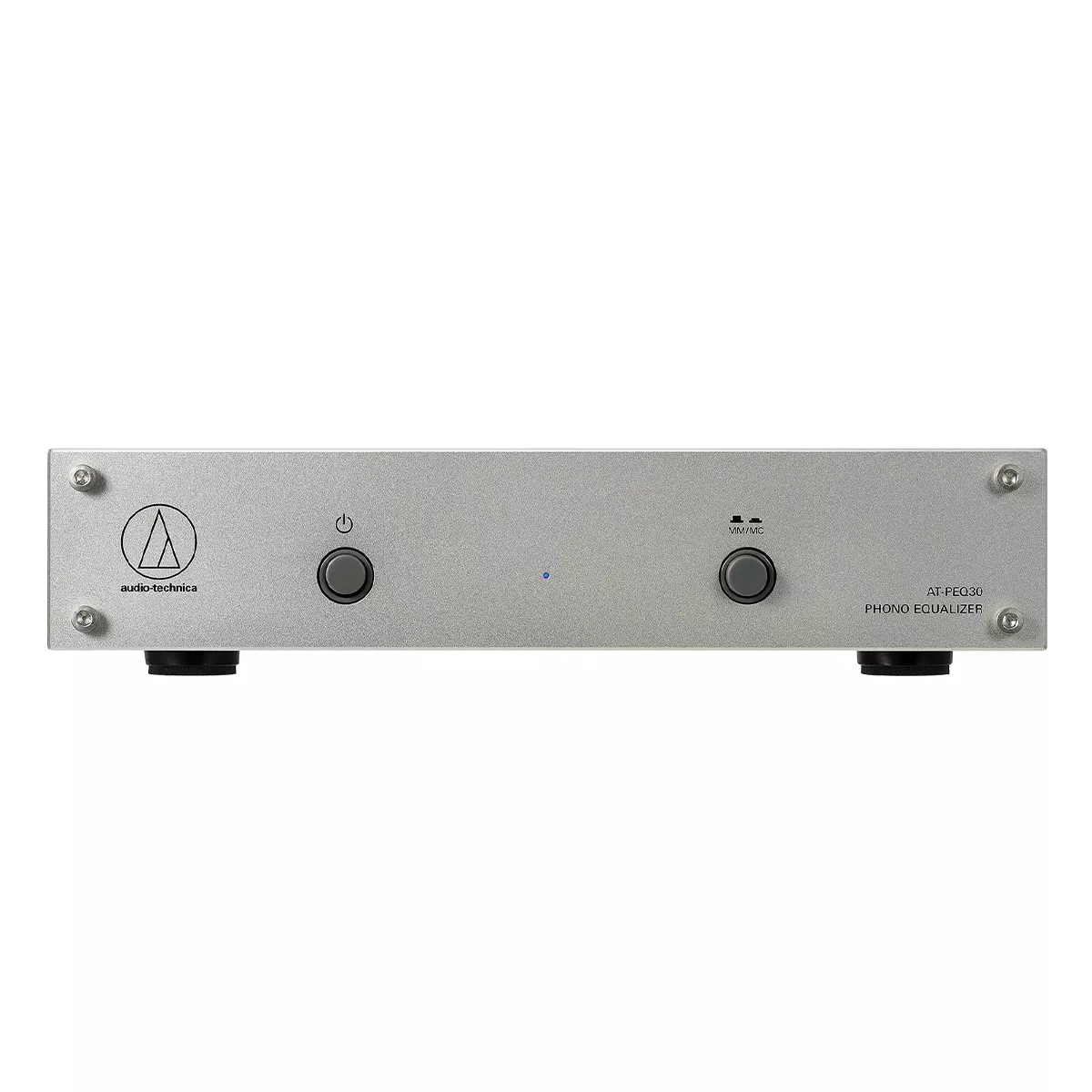

Upgrade Your Vinyl Experience: Audio-Technica AT-PEQ30 Phono Equalizer for MM and MC Cartridges

The Audio-Technica AT-PEQ30 phono equalizer is designed to enhance your turntable setup by providing a high-quality phono stage or upgrading your turntable’s built-in phono preamplifier. Compatible with both MM (moving magnet) and MC (moving coil) cartridges, this phono equalizer benefits from Audio-Technica’s decades of expertise in analog audio technology, using premium components to minimize noise and distortion.

Key Features:

Selectable MM and MC input with fixed gain and impedance for compatibility with a wide range of cartridges
High-quality FET inputs with negative feedback-type phono equalizer circuit ensure a low-noise signal
Precision components provide an accurate RIAA response for best-in-class performance
The robust all-metal enclosure provides superior isolation from electronic interference
The premium machined aluminum front panel and gold-plated RCA connectors reflect the high-quality materials used throughout

What’s in the Box

AT-PEQ30 Phono Equalizer
AC Adapter

Specifications

Input Impedance MM type: 47 kiloohms
MC type: 120 ohms

Input Sensitivity MM type: 4.5 mV
MC type: 0.28 mV

Rated output MM type: 250 mV
MC type: 250 mV

Gain MM type: 35 dB
MC type: 59 dB

Signal-to-Noise Ratio MM type: 100 dB
MC type: 74 dB

RIAA Deviation (20 to 20000 Hz) MM type: 0.5 dB
(20 to 20000 Hz) MC type: 0.5 dB

Power Supply: DC 15 V 1.2 A
Power Consumption: 2.5 W
Dimensions (W x H x D): 7.78″ x 1.85″ x 4.94″ (excluding protrusions)
Weight: 31.4 oz
Accessories Included: AC adapter

Product Highlights

• Compatible with a wide range of MM and MC cartridges
• Low-noise signal with high-quality FET inputs
• Accurate RIAA equalization for superior performance
