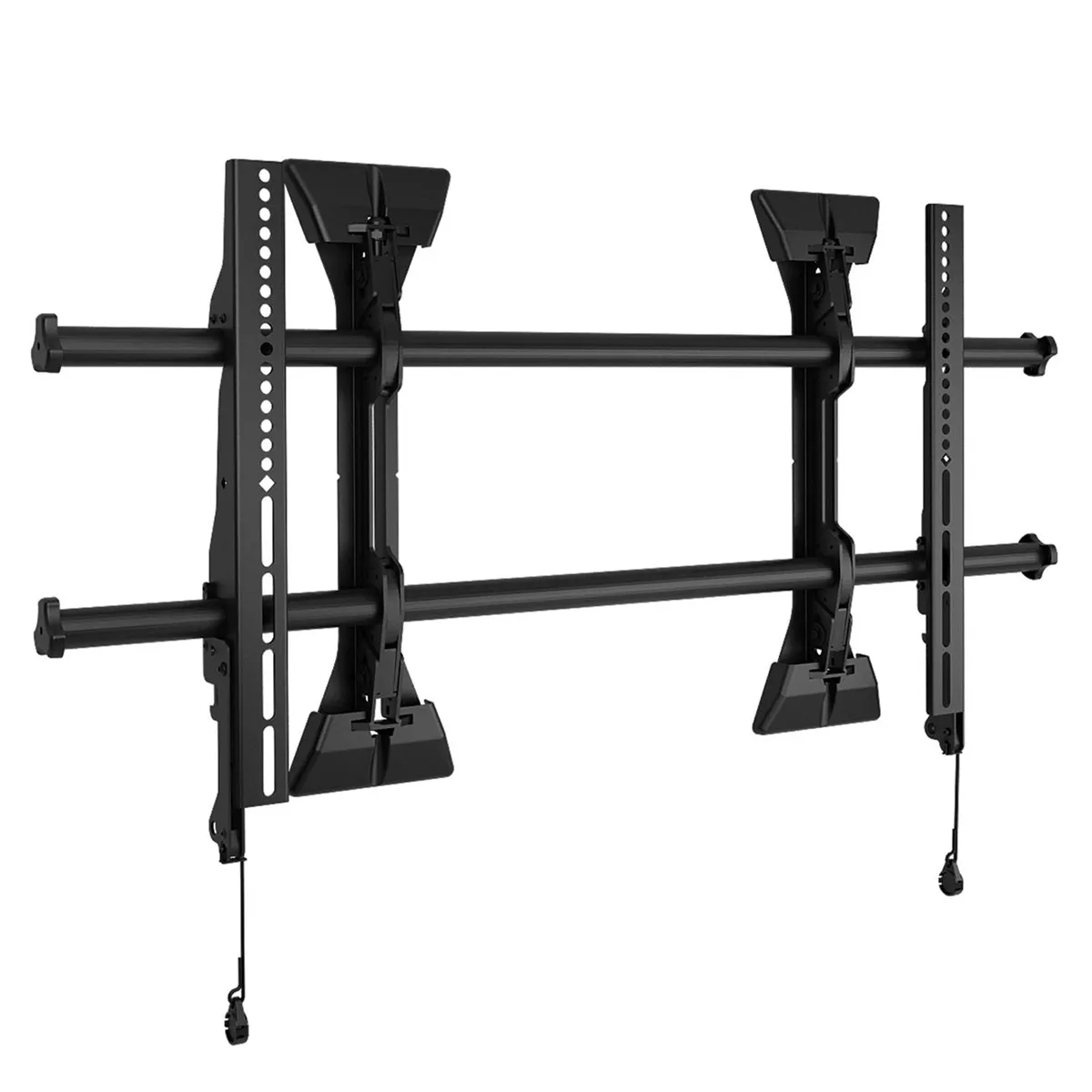

Chief LSM1U Adjustable Fixed TV Mount for Large 37″-63″ Displays

Chief’s upgraded LSM1U fixed wall mount incorporates feedback from installers to provide a reliable, flexible solution for large display installations. Features include ControlZone leveling, Centerless Shift for lateral adjustment, and ClickConnect Latching for secure screen engagement. The LSM1U offers numerous benefits such as enhanced stability, faster installation, and improved cable management.

LSM1U Features:

Integrated teardrop design for expedited wall plate installation
ControlZone Leveling for precise post-installation height and leveling adjustments
Centerless Shift with up to 17.4″ (441 mm) of lateral shift for optimal display centering
Set screws for added rigidity and stability
ClickConnect with audible click for secure screen mounting
Built-in cable stand for easy cable access
Compatibility with a range of accessories for customized installations
Multiple installation options to accommodate various stud distances
Exclusive nesting spacers for achieving desired depth
Quick-Store Cords with magnetic storage for pull cords
Improved cable management through innovative end caps
Integrated Security for enhanced protection
Custom hardware kit included for staged installations
Eco-friendly packaging with minimal waste

LSM1U Specifications:

Certifications: UL Listed
Color: Black
Lateral Shift: 17.4″ (441 mm)
Manual Height Adjustment: 1″ (25 mm)
Minimum Depth: 2″ (51 mm)
Mounting Pattern Compatibility: 100 mm x 100 mm – 880 mm x 400 mm
Orientation: Landscape
Overall Dimensions (H x W x D): 18.25 x 34.75 x 2″ (464 x 883 x 51 mm)
Solution Type: Universal
Typical Screen Sizes: 37-63″
Wall Stud Compatibility: 16-32 inches
Weight Capacity: 200 lbs (91 kg)

Product Highlights

• Flexible installation options for various stud spacings
• Customizable depth with stackable nesting spacers
• Streamlined cable management with new end caps
