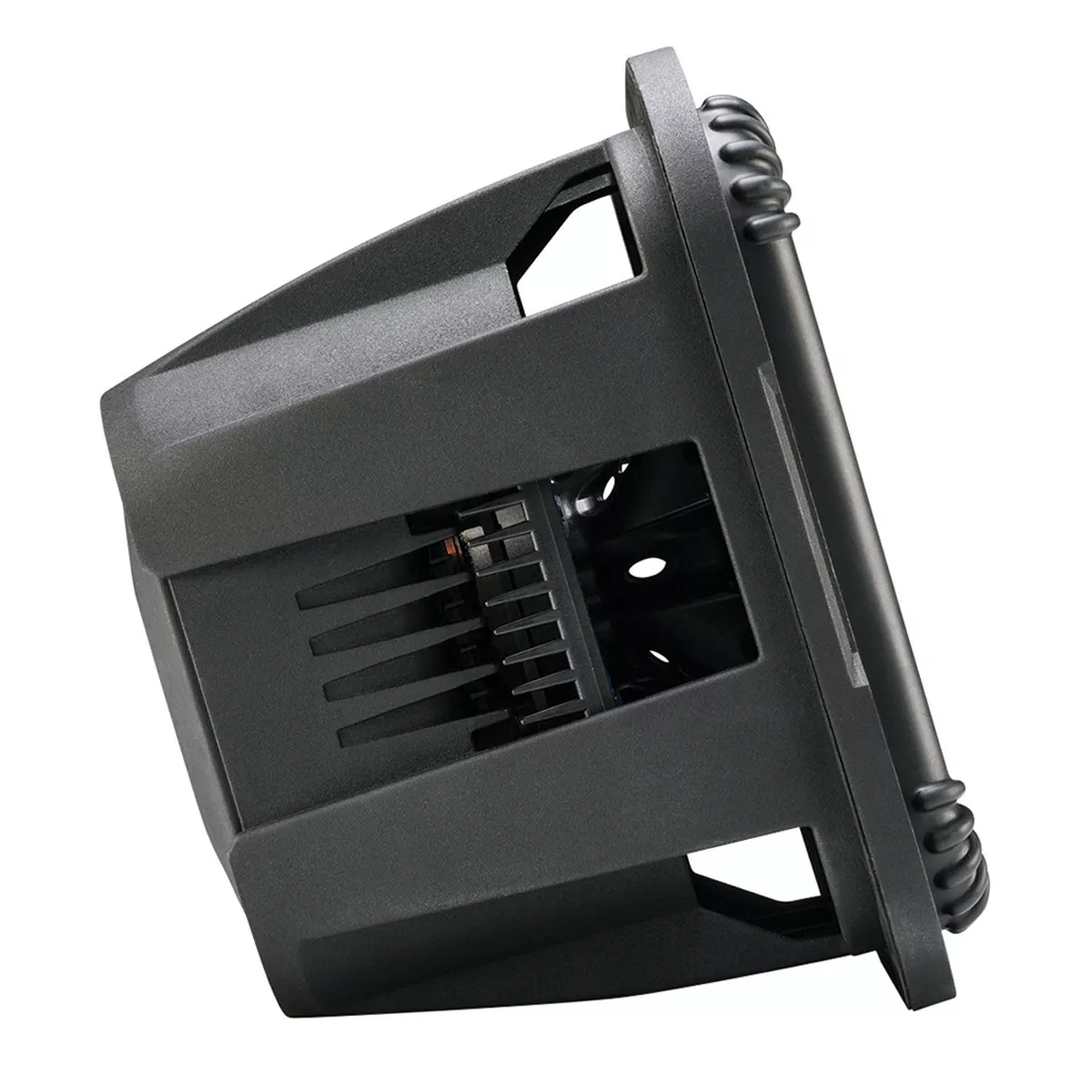

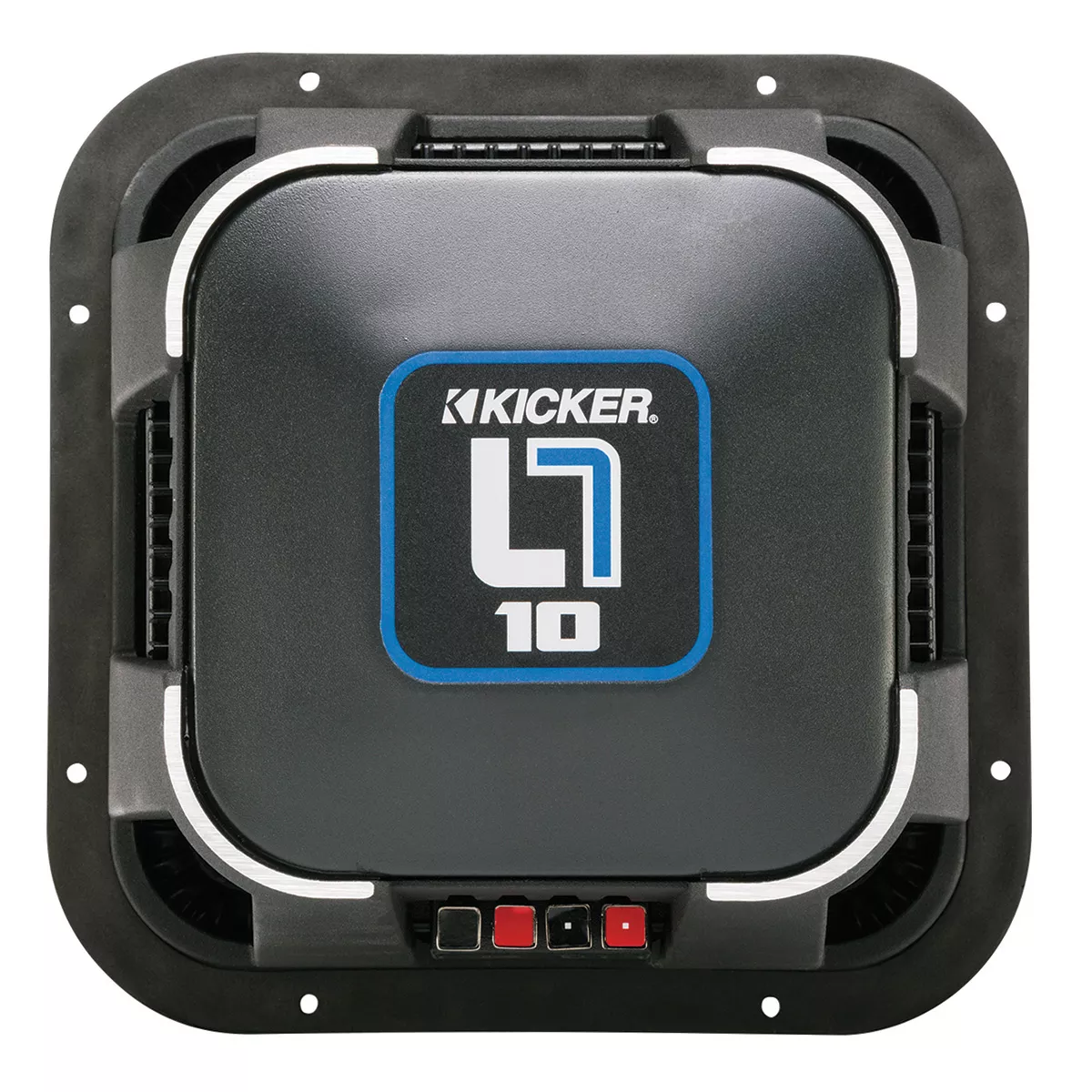

Kicker 41L7104 10-Inch Q-Class L7 Subwoofer with High-Performance Dual 4-Ohm Voice Coils

41L7104 10-Inch Q-Class L7 Subwoofer with Dual 4-Ohm Voice Coils

The Kicker L7 subwoofer stands out with its uniquely designed cone shape that maximizes output and performance.

Square Subwoofers Produce Superior Sound

Kicker’s square subwoofers deliver 20% more cone surface area compared to traditional circular subwoofers, resulting in greater sound production. A larger cone area translates into more air displacement, providing a more immersive bass experience.

Massive Motor for Extreme Power Handling

The Kicker L7 is equipped with an oversized magnet and aluminum voice coil, ensuring maximum power handling and efficient energy transfer to produce powerful bass.

Advanced Heat Management with Uniplate Technology

Kicker’s proprietary Uniplate technology merges the pole piece and back plate into a single unit, effectively dissipating heat and maintaining optimal performance over extended periods.

Smooth Performance with Santoprene Corners

The patented Santoprene corners enable the Kicker subwoofer to play smoothly and maintain distortion-free sound at various volume levels.

Reliable Suspension for Optimal Performance

The Kicker Blue Lace spider and ribbed surround work together to provide an exceptional suspension system for the L7 subwoofer, ensuring accurate and robust bass response.

The Evolution of L7 Subwoofers

The Kicker L7 has achieved technological advancements and garnered industry recognition, including a 2015 CES Innovation Award. This latest version continues Kicker’s legacy of producing high-quality subwoofers that have won numerous accolades.

Included in the Box:

One 41L7104 subwoofer
Template
Owner’s manual

Specifications:

Rated Impedance []: 4
Fs [Hz]: 37.5
Sensitivity [1W 1m]: 85.9
Qts: 0.507
Qms: 9.791
Qes: 0.535
Re []: 7.9
Vas [ft L]: 1 28.32
Continuous Power Handling [Watts RMS]: 750
Outer Frame Dimension [in cm]: 10-11/16 27.2
Mounting Depth [in cm]: 6-7/8 17.5
Mounting Cutout [in cm]: 9-5/16 23.7
Frequency Response [Hz]: 24-100

Sealed Enclosure Specs

Minimum Sealed Volume ft3 (L): 0.8 (22.65)
Minimum Sealed Power Handling: 750W RMS
Maximum Sealed Volume ft3 (L): 1.25 (35.4)
Maximum Sealed Power Handling: 750W RMS

Panel Dimensions for Minimum Sealed Enclosures using 3/4 (1.9cm) thick MDF

Box Volume [ft L]: 0.8 (22.65)
Panel A [in cm]: 13.5×13.5 34.3×34.3
Panel B [in cm]: 13.5×9.5 34.3×24.13
Panel C [in cm]: 12×9.5 30.5×24.13

Vented Compact Enclosure Specs

Box Volume ft (L) + port displacement: 1.25 (35.4)
Port Opening Size in x in (cm x cm): 2.5×11.25 (6.4×29)
Port Length in (cm): 19.75 (50)
Power Handling RMS: 750

Vented SQ Enclosure Specs

Box Volume ft (L) + port displacement: 2.25 (63.7)
Port Opening Size in x in (cm x cm): 3×11.25 (7.6×29)
Port Length in (cm): 18 (46)
Power Handling RMS: 750

Key Features

• The L7 subwoofer is available with dual 2-ohm or dual 4-ohm voice coils.
• Dual 2-ohm voice coils can be wired to achieve a 1-ohm or 4-ohm load.
• Kicker’s patented Santoprene™ corners ensure smooth performance and minimal distortion.
