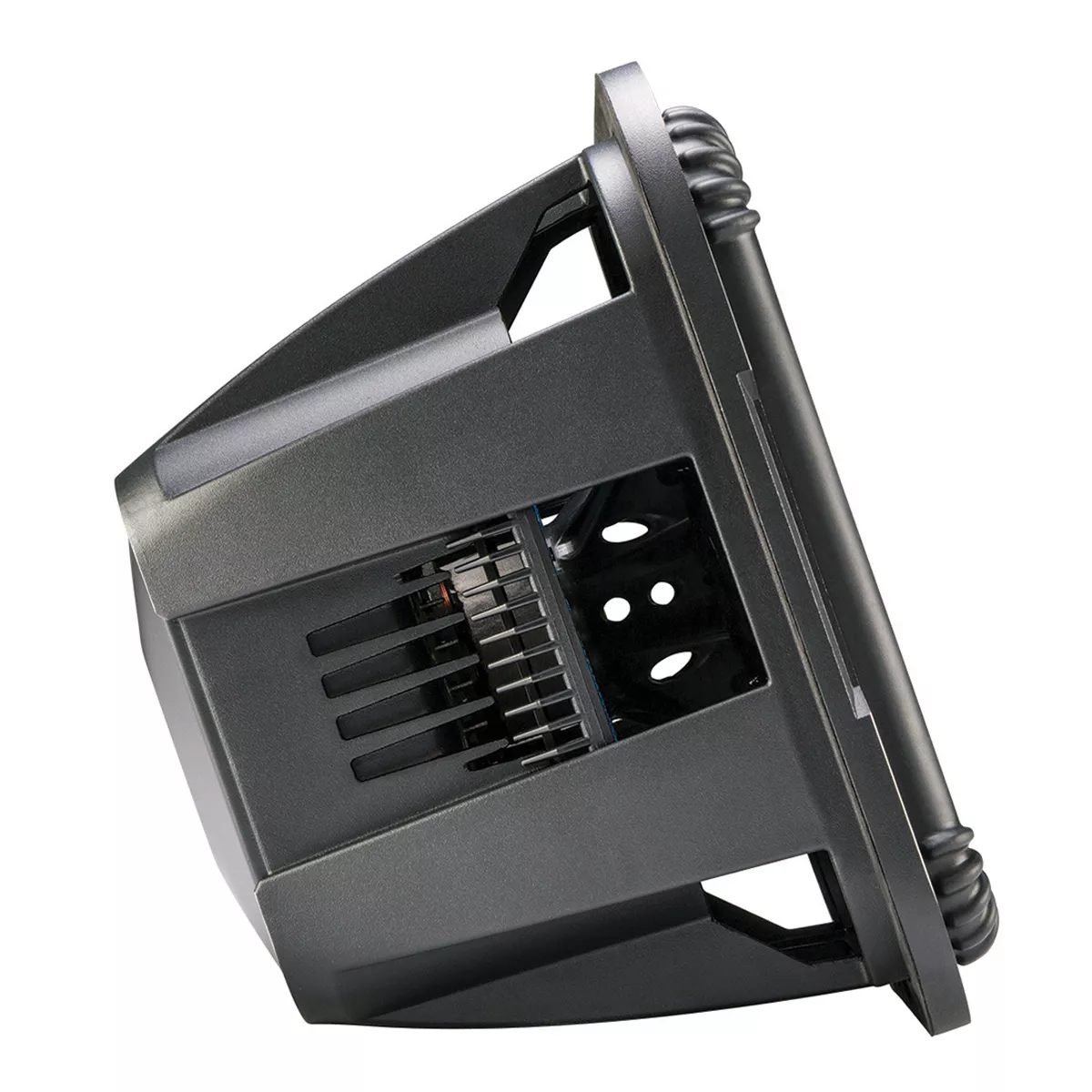

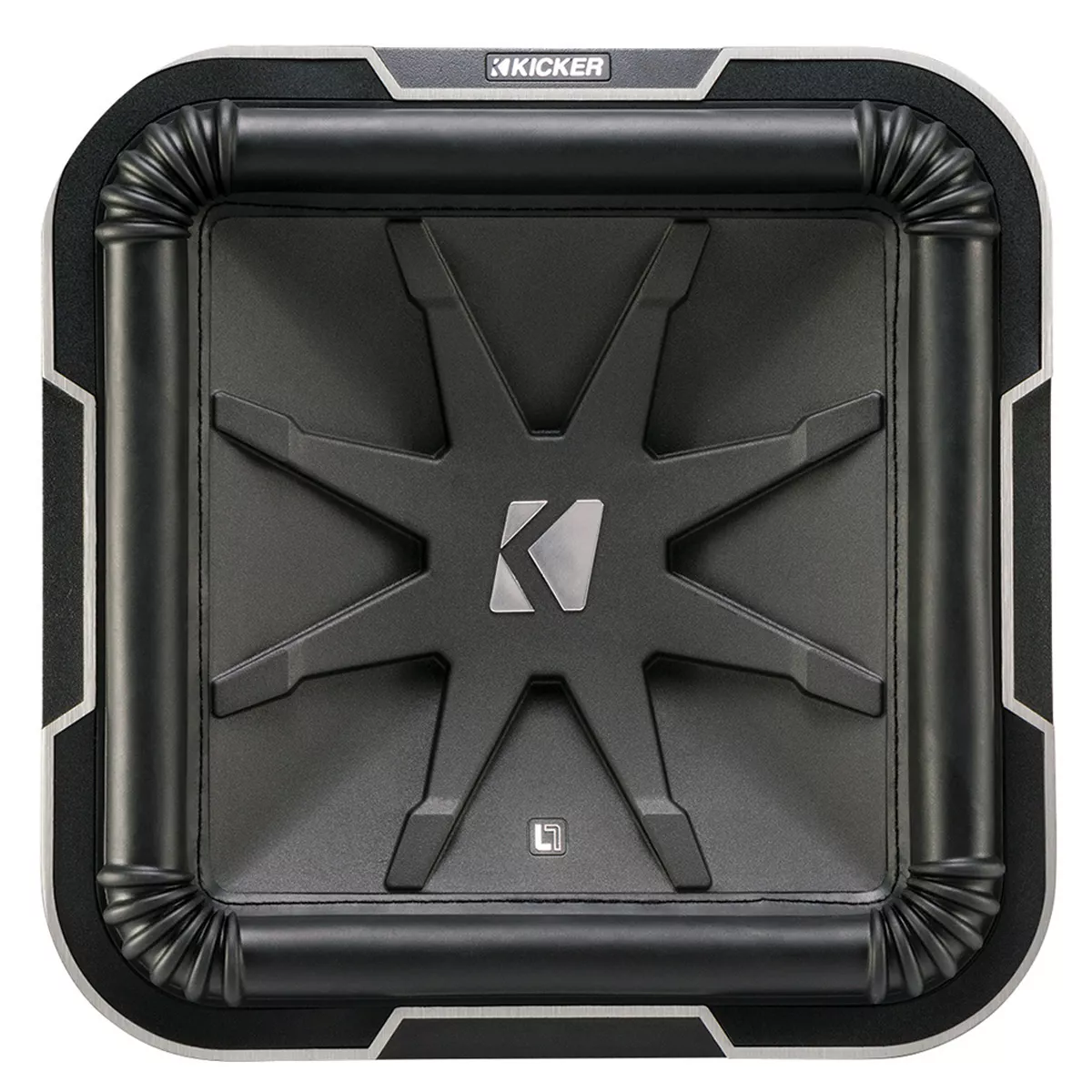

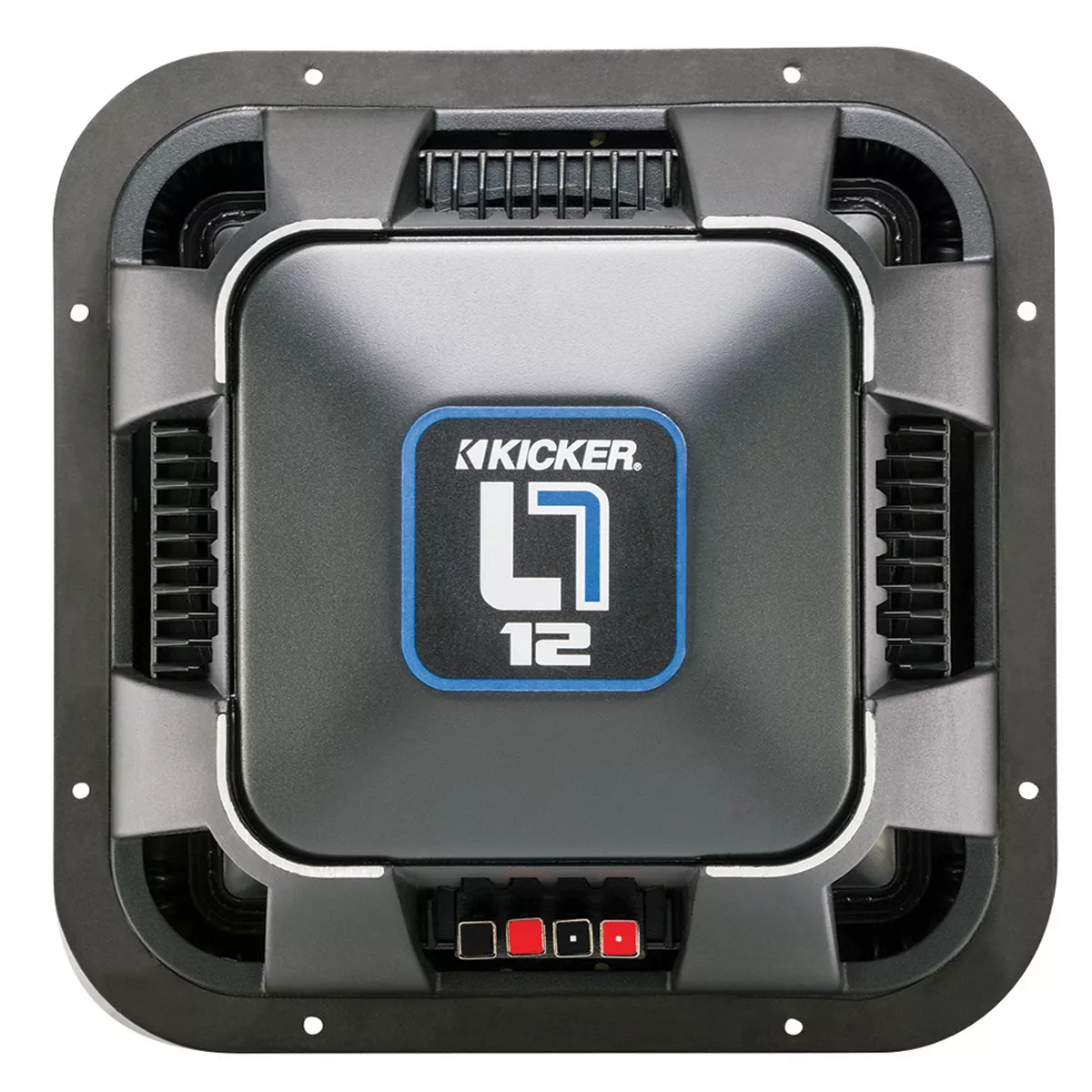

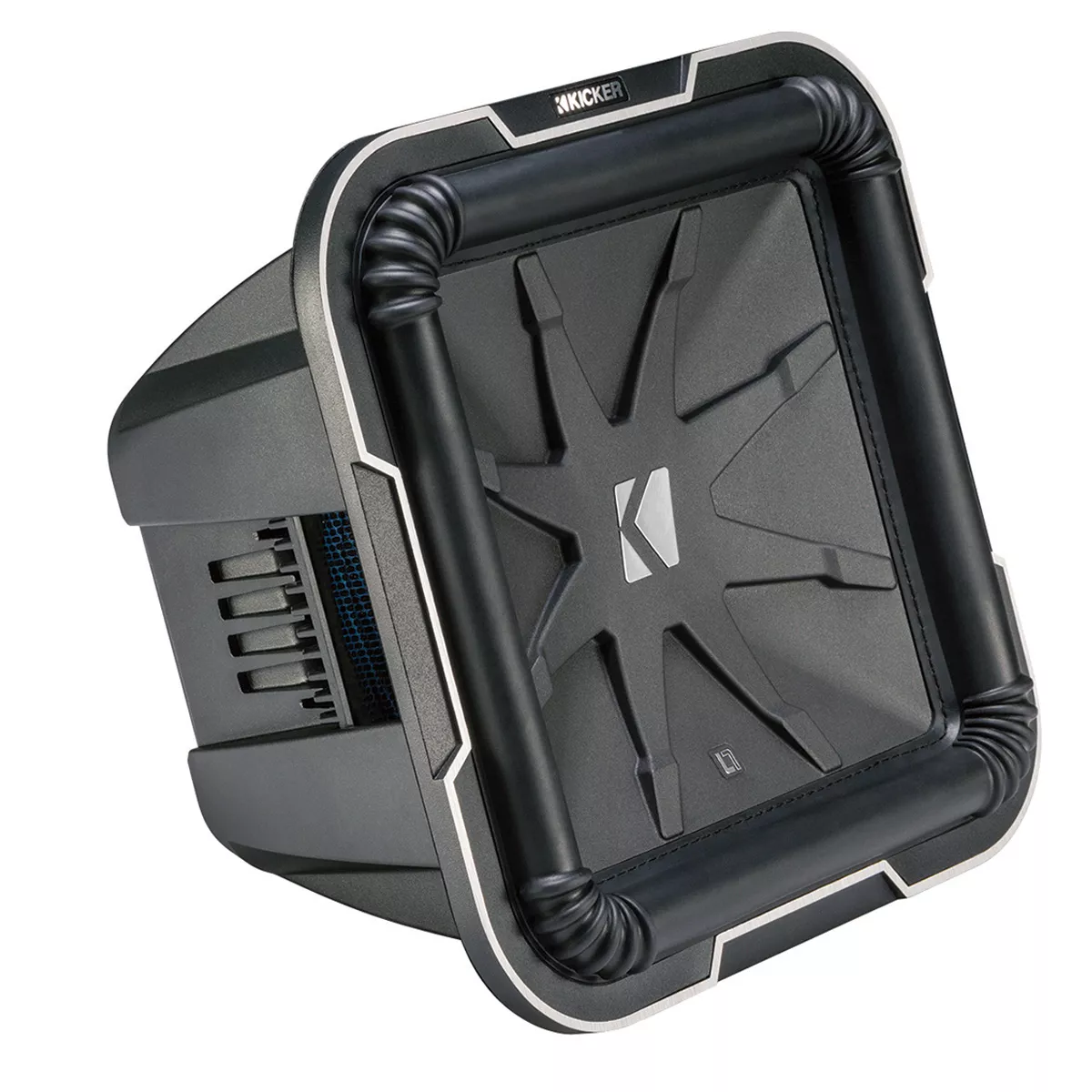

Kicker 41L7122 12″ L7 Subwoofer – Dual 2-Ohm Voice Coils, High-Performance Bass

41L7122 12″ Q-Class L7 Subwoofer w/ Dual 2-Ohm Voice Coils

The Kicker L7 subwoofer revolutionizes the market with its distinct cone shape, engineered to produce more output and enhance your audio experience.

Square Matters: Kicker’s square subwoofers provide 20% more surface area than comparable circular subs, resulting in more sound and deeper bass.

Massive Motor: With oversized magnets and an aluminum voice coil, this subwoofer handles extreme power and delivers it to your ears for an immersive experience.

Keep it Cool: The innovative Uniplate technology combines the pole piece and back plate into a single unit, effectively dissipating heat and ensuring sustained bass performance.

Smooth Bass: Kicker’s patented Santoprene corners enable smooth, distortion-free sound at any volume, enhancing your overall listening experience.

Strong Suspension: The Blue Lace spider and ribbed surround work in harmony to provide unparalleled accuracy and volume, making every note feel impactful.

The New L7: As a CES Innovation Award winner, the Kicker L7 subwoofer has redefined the industry with its technological advancements and design improvements.

What’s in the Box:

One 41L7122 subwoofer
Template
Owner’s manual

Specifications:

Rated Impedance []: 2
Fs [Hz]: 34
Sensitivity [1W 1m]: 86.9
Qts: 0.539
Qms: 9.488
Qes: 0.571
Re []: 6.8
Vas [ft L]: 1.92 54.274
Continuous Power Handling [Watts RMS]: 900
Outer Frame Dimension [in cm]: 12-9/16 32
Mounting Depth [in cm]: 7-7/8 20
Mounting Cutout [in cm]: 11-1/16 28.1
Frequency Response [Hz]: 20 100

Sealed Enclosure Specs

Minimum Sealed Volume ft3 (L): 1 (28.32)
Minimum Sealed Power Handling: 900W RMS
Maximum Sealed Volume ft3 (L): 2 (56.64)
Maximum Sealed Power Handling: 900W RMS

Panel Dimensions for Minimum Sealed Enclosures using 3/4 (1.9cm) thick MDF

Box Volume [ft L]: 1 (28.32)
Panel A [in cm]: 13.5×13.5 34.3×34.3
Panel B [in cm]: 13.5×12 34.3×30.5
Panel C [in cm]: 12×12 30.5×30.5

Vented Compact

Box Volume ft (L) + port displacement: 1.75 (49.6)
Port Opening Size in x in (cm x cm): 2.5×13.25 (6.4×34)
Port Length in (cm): 22.5 (57)
Power Handling RMS: 900

Vented SQ

Box Volume ft (L) + port displacement: 3.25 (92)
Port Opening Size in x in (cm x cm): 3×13.25 (7.6×34)
Port Length in (cm): 14.5 (37)
Power Handling RMS: 900

Product Highlights

• Santoprene™ corners for reduced distortion.
• Unique L7 cone design for enhanced output.
• Optimal port opening size for peak performance.
