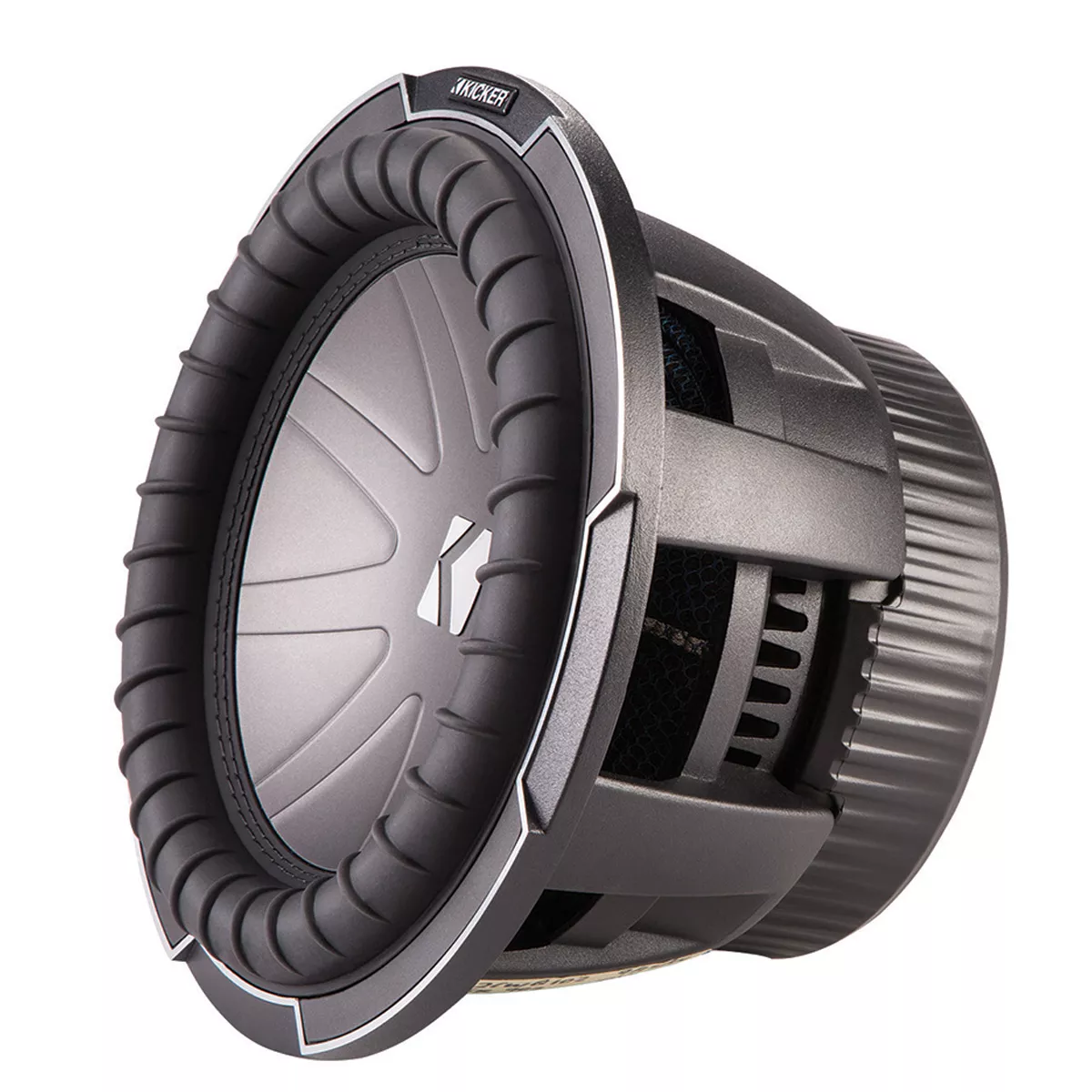

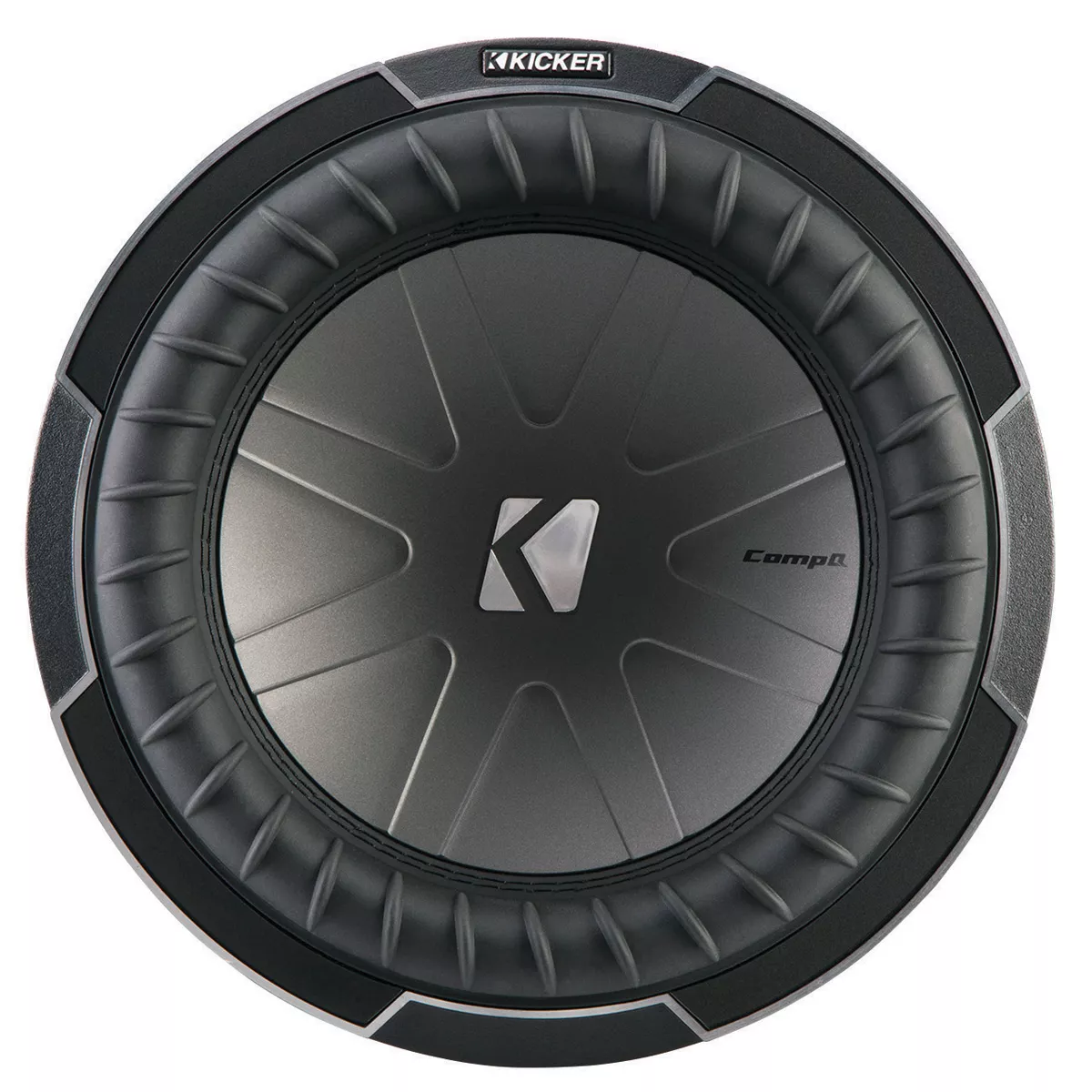

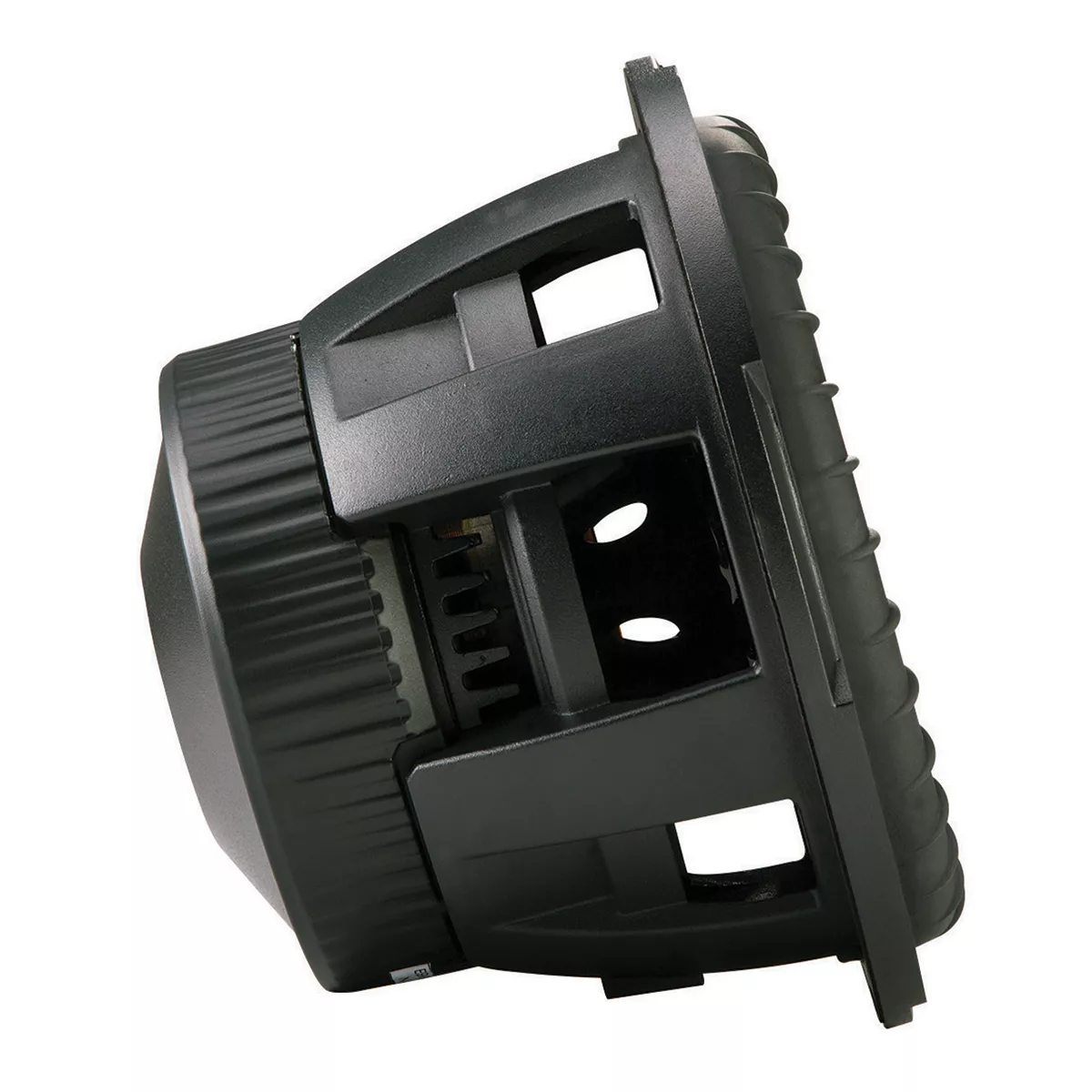

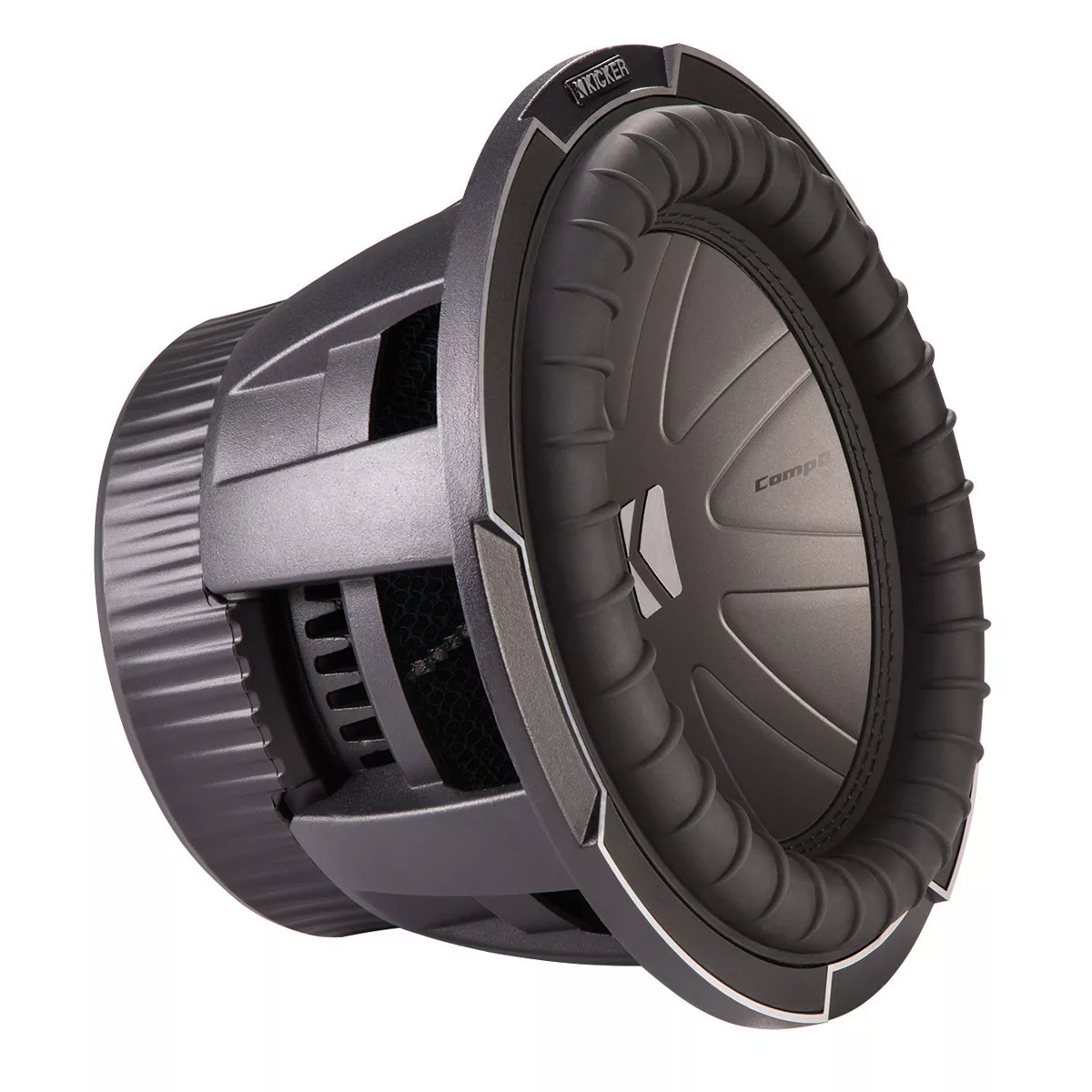

Kicker 42CWQ104 10″ CompQ Subwoofer with Dual 4-Ohm Voice Coils – High-Quality Bass and Sound Accuracy

42CWQ104 10″ CompQ Subwoofer w/ Dual 4-Ohm Voice Coils

Enhance your car audio system with the best sound quality round subwoofer Kicker has ever made. The CompQ 10-inch subwoofer is engineered for exceptional bass response, boasting nearly identical construction and performance as their L7 square subs. With excellent power handling and a unique power plant, the CompQ subwoofer delivers high-caliber bass with accurate sound quality and impressive volume.

The subwoofer features Kicker’s unique cone bracing technology, known as ‘Stabilize’, which ensures linear cone movement and provides increased stability with the Blue Lace spider. A ceramic magnet and computer-optimized voice coil combine to provide remarkable power handling, making it ideal for those seeking superior bass performance. The UniPlate pole piece and backplate help to keep the subwoofer cool under extreme power loads.

For optimal performance, the CompQ 10-inch subwoofer is recommended to be used with a sealed or ported enclosure and 700 watts of power. ‘Join Forces’ technology is utilized through spring-loaded copper terminals that can accommodate up to 8-gauge speaker wire and extra-thick tinsel leads, directing every watt of power to the voice coil.

The CompQ 10 Subwoofer is equipped with dual 4-Ohm voice coils, making it perfect for various car audio setups. Its impressive specifications include a continuous power handling of 700 watts RMS, a frequency response of 24-100 Hz, and a sensitivity of 85.7 dB.

What’s in the Box:

One 42CWQ104 subwoofer
Template
Owner’s manual

Specifications:

Rated Impedance []: 4
Fs [Hz]: 38
Sensitivity [1W 1m]: 85.7
Qts: 0.437
Qms: 8.916
Qes: 0.46
Re []: 6.52
Vas [ft L]: .59 16.75
Continuous Power Handling [Watts RMS]: 700
Outer Frame Dimension [in cm]: 10-11/16 27.2
Mounting Depth [in cm]: 6-3/8 16.2
Mounting Cutout [in cm]: 9-3/16 23.4
Frequency Response [Hz]: 24 100

Sealed Enclosure Specs

Minimum Sealed Volume ft3 (L): .66 (18.7)
Minimum Sealed Power Handling: 700 RMS
Maximum Sealed Volume ft3 (L): 1.25 (35.4)
Maximum Sealed Power Handling: 700 RMS

Panel Dimensions for Minimum Sealed Enclosures using 3/4 (1.9cm) thick MDF

Box Volume [ft L]: .66 (18.7)
Panel A [in cm]: 12×12 30.5×30.5
Panel B [in cm]: 12×10.5 30.5×26.7
Panel C [in cm]: 10.5×10.5 26.7×26.7

Vented Minimum

Box Volume ft (L) + port displacement: 1.25 35.4
Port Opening Size in x in (cm x cm): 2.5×11.25 6.4×29
Port Length in (cm): 19.75 50
Power Handling RMS: 700

Vented Maximum

Box Volume ft (L): 2.25 63.7
Port Opening in x in (cm x cm): 3×11.25 7.6×29
Port Length in (cm): 18 46
Power Handling Watts RMS: 700

Product Highlights

• Best sound quality round subwoofer by Kicker with exceptional bass and sound accuracy
• Ideal for sealed or ported enclosures, requiring 700 watts of recommended power for optimal performance
• Features dual 4-Ohm voice coils and advanced ‘Stabilize’ and ‘Join Forces’ technologies for high-caliber bass response
