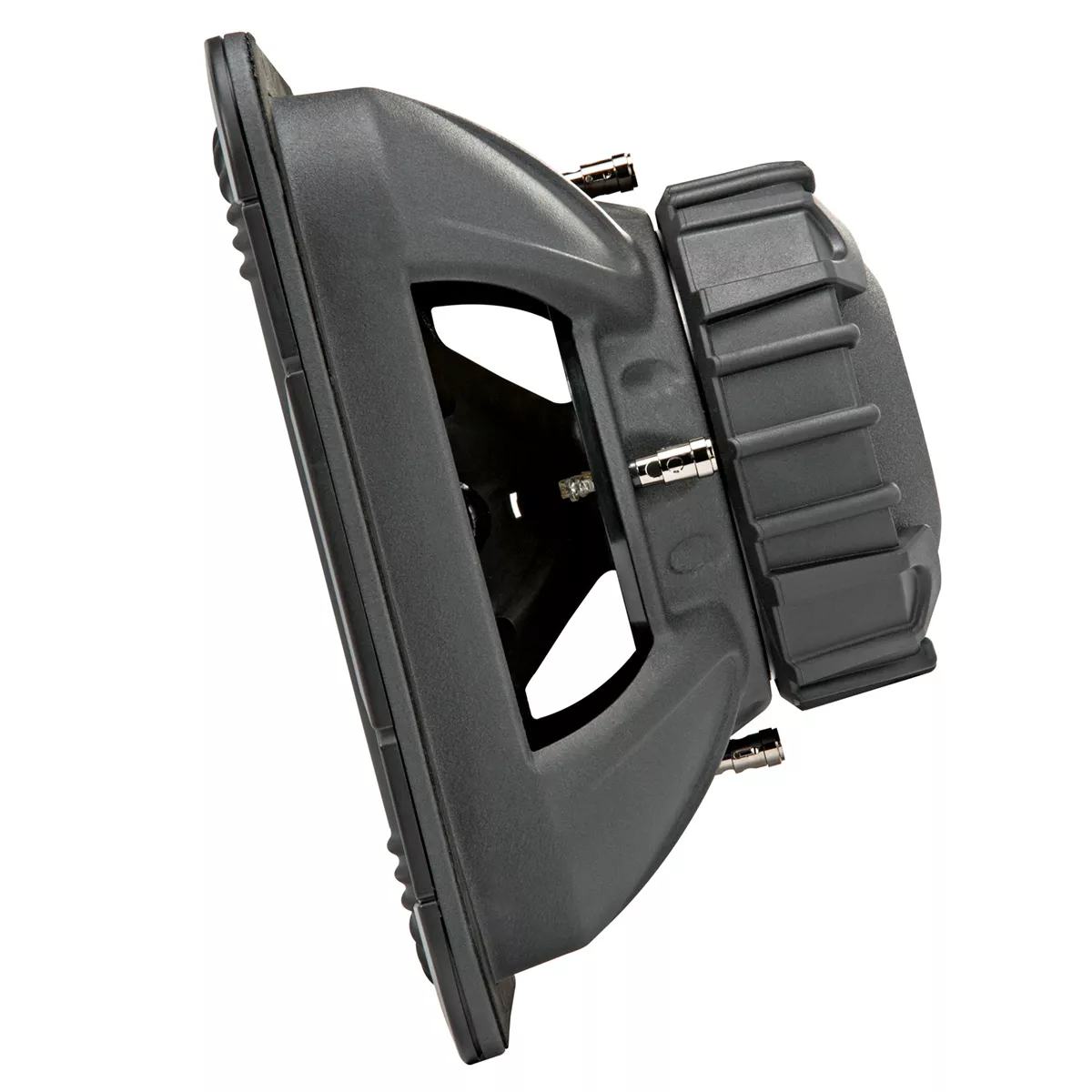

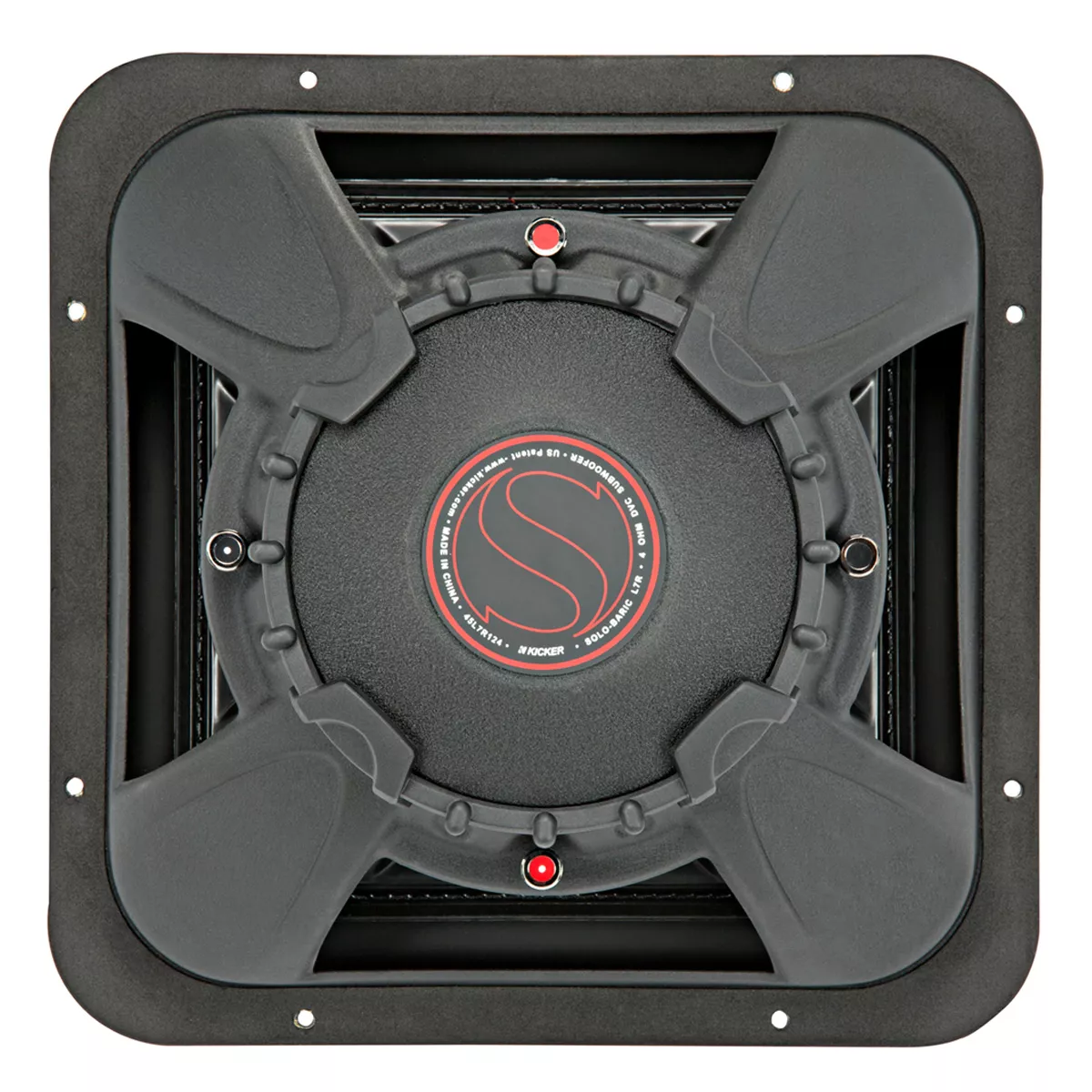

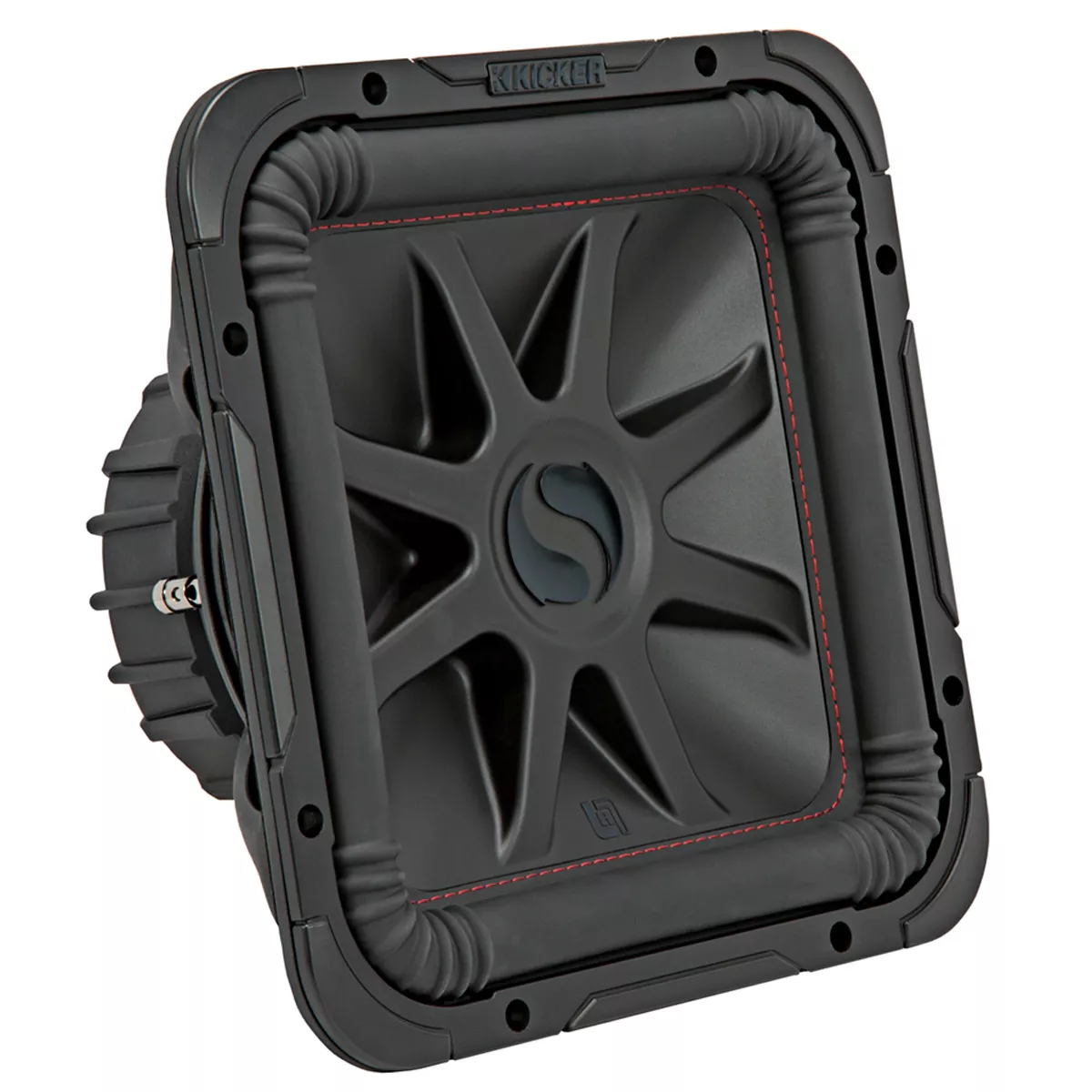

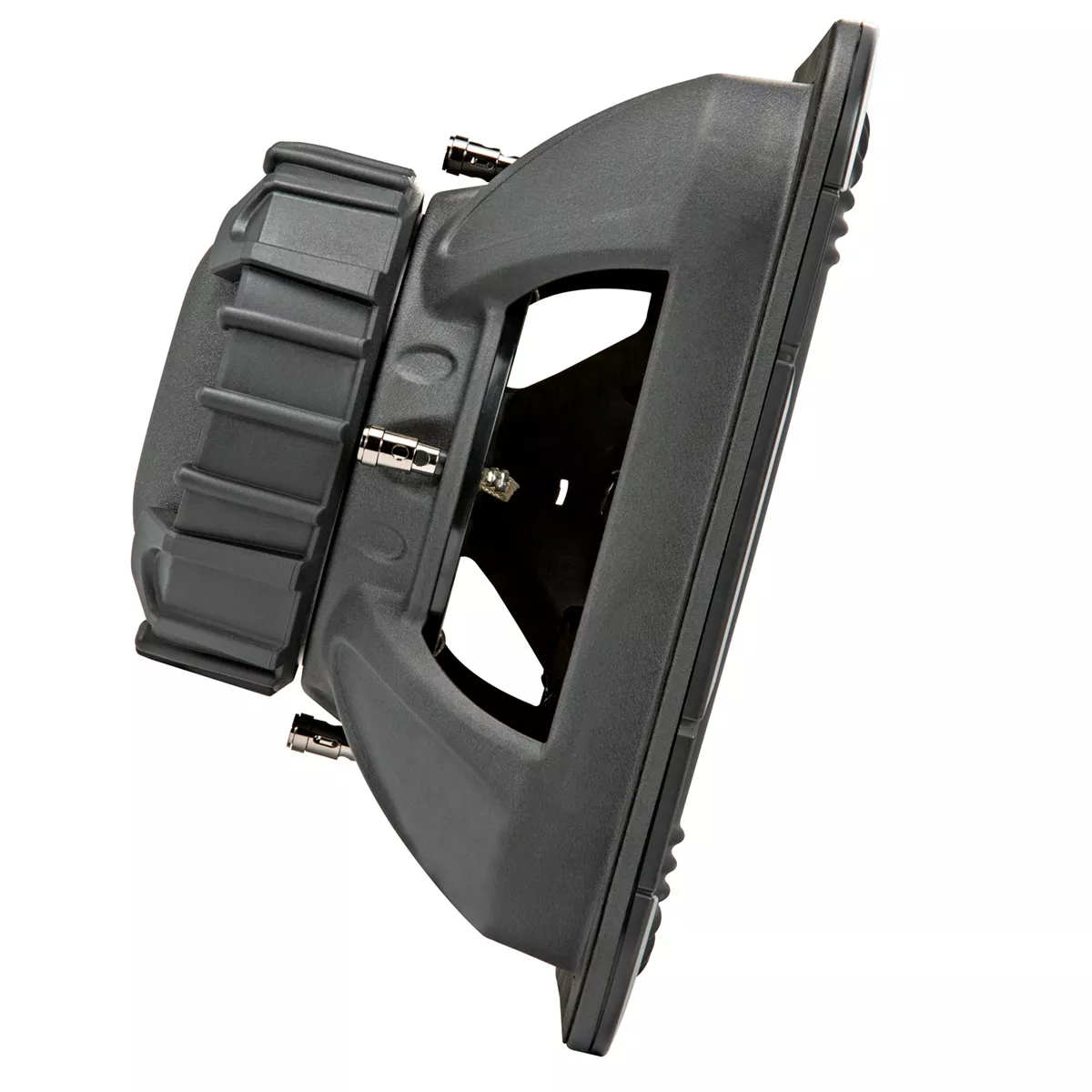

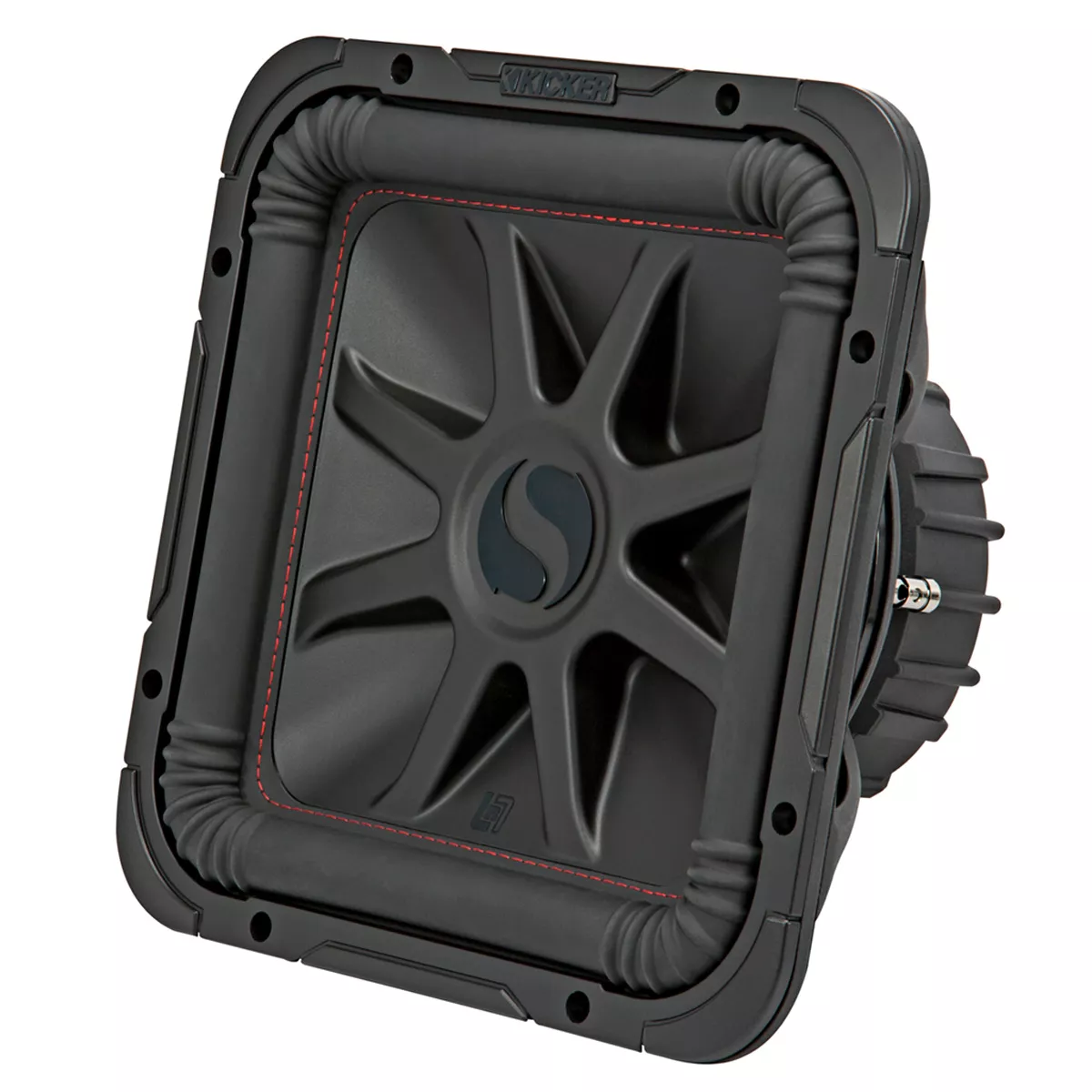

KICKER 10″ L7R Square Subwoofer – 2-Ohm Dual Voice Coil, High-Performance Car Audio Bass Speaker

45L7R102 10″ L7R Square 2-ohm DVC Subwoofer

Hip to Be Square

The KICKER L7R Square Subwoofer technology provides up to 20% more cone area than a round sub, resulting in more air movement and deeper bass. Perfect for car audio enthusiasts seeking high-performance bass speakers.

Signature Stitching

The ribbed Santoprene surround is bound to the injection-molded SoloKon cone with signature red stitching, adding strength and durability even under extreme stress, ensuring optimal performance.

Braced for Impact

The 360-degree back bracing keeps the entire cone strong and stable, providing smooth distortion-free bass, a must for any high-quality car subwoofer.

Takes the Heat

The L7R’s powerful motor delivers big bass while utilizing advanced thermal management for optimal performance. The UniPlate solid pole piece and backplate construction ensure the sub stays cool even under extreme power loads, a key feature for serious car audio systems.

It’s Wired

Dual voice coils come standard on all L7R models, offering ultimate wiring flexibility and the ability to get the highest possible power out of your amplifier, a crucial aspect for high-performance car audio.

Square Solution

KICKER’s square subs deliver more cone area, resulting in more bass without requiring additional air space, making them ideal for car audio installations where space is limited.

Features:

Dual two-Ohm Voice Coil
Wrap Around Gasketing
Patented Ribbed Corners
Injection-Molded SoloKon Woofer
360-Degree Back Bracing
UniPlate Back Plate And Pole Piece
Bumped Back Plate
Thick Tinsel Leads
Large Ceramic Magnet
Steel Basket With Spoke Design
Nickel Plated Speaker Terminals
The L7R 10-Inch Subwoofer is recommended for use with 500 watts of power in a sealed or ported enclosure.

What’s in the Box:

One 45L7R102 subwoofer
Mounting hardware
Owners manual

Specifications:

Size [in cm]: 10 25
Impedance [Ohms]: 2 DVC
Power (Watts) [peak/RMS]: 1000/500
Sensitivity [dB 1w/1m]: 85.9
Mounting depth [in cm]: 6-1/8 15.7
Mounting diameter [in cm]: 9-5/16 23.7
Min. sealed box volume [cu. ft L]: .66 18.7
Max. sealed box volume [cu. ft L]: 1 28.3
Min. vented box volume [cu. ft L]: 1.25 35.4
Max. vented box volume [cu. ft L]: 2.25 63.7

Product Highlights

• Dual 2-Ohm voice coil for flexibility and maximum power
• Wrap Around Gasketing for secure fit
• Patented Ribbed Corners for added durability
• Injection-Molded SoloKon Woofer for quality sound
• 360-Degree Back Bracing for stability
