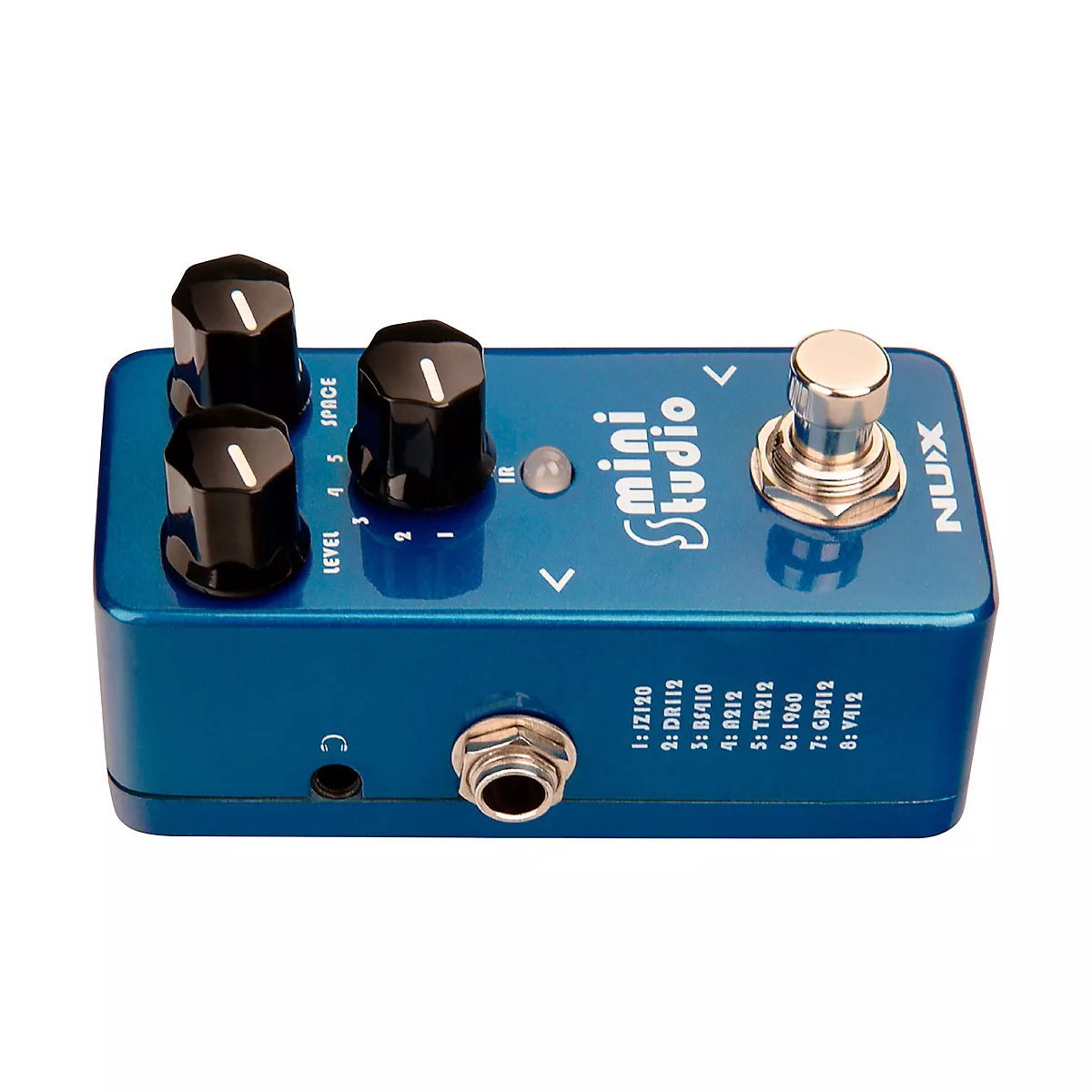

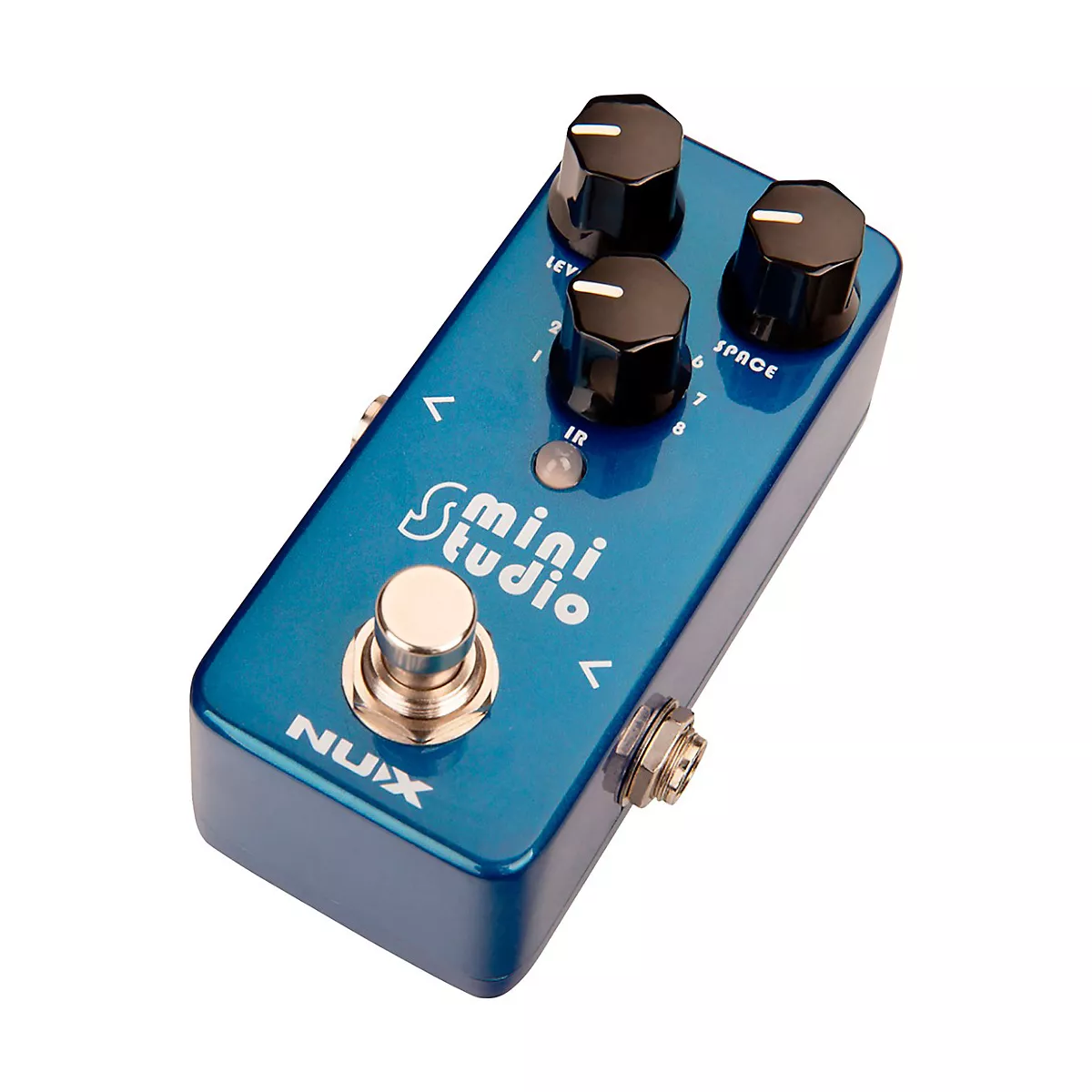

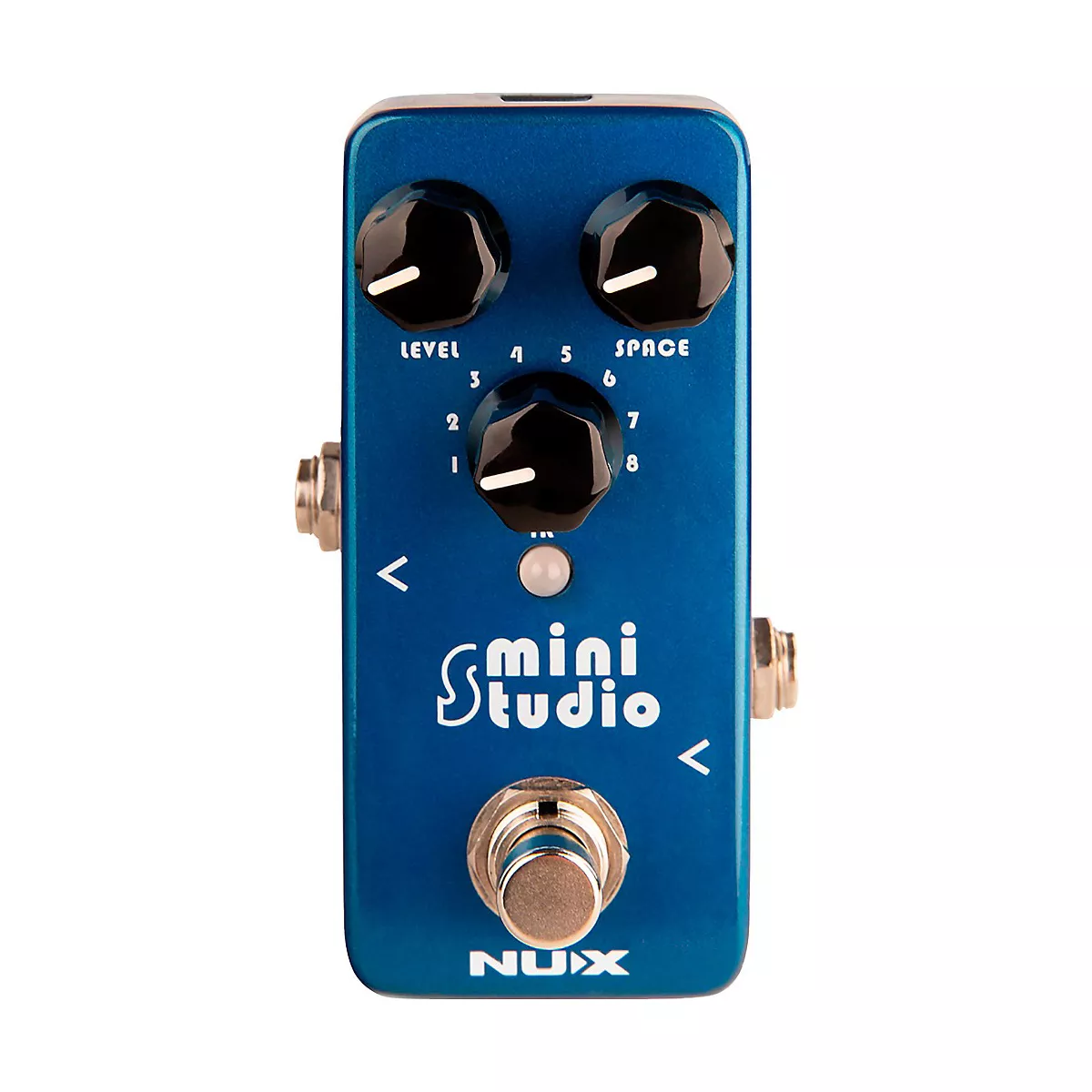

NUX Mini Studio IR Loader

The NUX Mini Studio brings 8 speaker cabinets into pocket size now. Each impulse response (IR) file is captured from its own original source and processed with the state-in-art audio technology. At the end of the signal chain, Mini Studio delivers incredible, realistic emulations of some of the industry’s most popular speaker cabinets.

Built-in Speaker Cabinet Models:
-JZ120 Roland Jazz 120
-DR112 Fender Deluxe Reverb
-BS410 Fender Bassman 410
-A212 VOX AC30 212
-TR212 Fender Twin Reverb 212
-1960 Marshall 1960A 412
-GB412 Celestion Greenback 412
-V412 Celestion Vintage 30 412

Load Own Favorite IR File
It has 8 well-known speaker model presets, each of which is also a memory spot that can load favorite IR files. It delivers the signal from input to output with ultra low latency (1.2 ms), in 24-bit 44.1KHz audio quality. Mini Studio’s sampling length is 1,024 points, which means will get a high resolution audio with a powerful speaker sound.

Tone Density
NUX Mini Studio has a Space knob to adjust the simulation of the speaker cabinet’s room size. When increase the size of the room, can feel the reflection decay as it happens in the real room.

Multi-Purpose
From pedalboard to a mixer or audio interface, will experience very realistic speaker cabinet sound. It can even turn any personal monitor speaker (full range flat response amps recommended) into any of favorite amplifier. Also it’s a very useful gear in the studio. Just connect pedalboard/multi-effects pedal to Mini Studio and record with audio interface to capture a wide range of great cab sounds without the cost or clutter of analog gear.

Product Highlights

• Power requirement: 9V negative tip
• 8 Built-in Speaker Cabinet Models
• Output Level and Space controls
• Mini Studio Software for IR file loading
